Electrohydraulic servo synchronous CNC press brake Bending machine tool parameters
- Advantages of Electrohydraulic Servo Synchronous CNC press brake Bending machine
The electro-hydraulic servo synchronous CNC press brake Bending machine is controlled by a professional and advanced CNC system, equipped with a deflection compensation device, and the operation is very simple and convenient, with low requirements for the operator’s experience. No manual lofting is required. With the correct step size input in the drawing, bending can be performed and automatic calculation can also be performed. Compared to the torsion axis press brake Bending machine, it frees up a lot of manpower and eliminates the excessive reliance on manual experience in bending work.

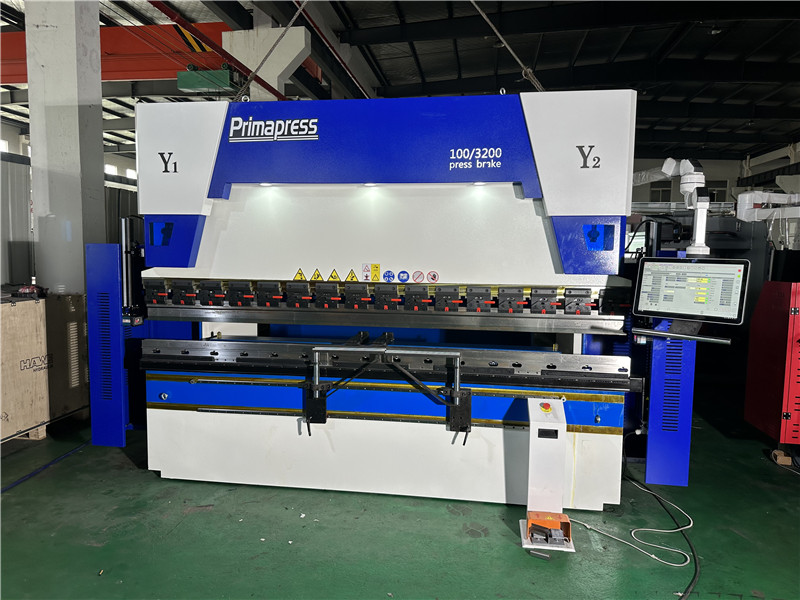

The Y1 and Y2 axes on the left and right sides of the electro-hydraulic servo synchronous CNC press brake Bending machine operate independently and can perform eccentric bending. This advantage effectively solves the problem of not deviating the torsion shaft press brake Bending machine
Taking our company’s 4-meter electro-hydraulic servo synchronous CNC bending machine as an example, the processed product has a very high straightness. The 201 stainless steel plate does not bend the small U-shaped groove of 10 * 15 * 10 without slotting. The 4-meter bending is equipped with workpieces, and there are no gaps in the assembly.
The electro-hydraulic servo synchronous CNC bending machine is controlled by a CNC system, achieving automatic calculation, storage and conversion of multiple processes, and saving a lot of labor costs. It uses a more accurate positioning of the rear stopper and a more accurate forming size of the front stopper. When used together, it can fold many irregular products. Expanding the processing range of equipment, resulting in faster speed and higher efficiency. In addition, the electro-hydraulic servo CNC bending machine supports multiple axes, models, and types, achieving personalized customization according to industry needs. It not only has conventional Y1 and Y2 axes (left and right oil cylinders that drive the slider up and down), X-axis (front and rear movement of the rear stopper), but also R-axis (up and down movement of the rear stopper), Z1 axis, Z2 axis (left and right movement of the stopper finger), etc., with a maximum of 18 or more axes.
2.5 Deflection compensation
The electro-hydraulic servo synchronous CNC bending machine is equipped with a deflection compensation device, which has functions such as angle compensation, length compensation, and gap error compensation. This device ensures the accuracy of the processed parts, reduces errors, and greatly improves the phenomenon of large errors and excessive rework in the torsion axis bending machine.
