Difference and features of the sheet metal v groover machine v grooving machine
Many customers are confused when buying a V Groover machine with a large price difference from low to high. Many people are: the V Groover machine is a
simple linear motion, and it costs too much to buy it. It doesn’t make any sense! A waste of money! But when you buy it back and use it,
you will find that the problem is not as simple as you imagined, and it feels like a waste of money.
So how to optimize the slotting machine? Now let me share with you, learn, and make progress together:
1. From the working principle, it is divided into hydraulic type (hydraulic oil is required) and pneumatic type (no hydraulic oil is required)
2. Classification of slotting machine
1.1. Gantry style CNC V Groover machine:

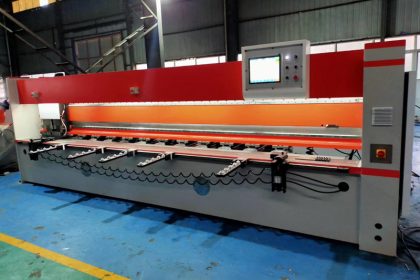

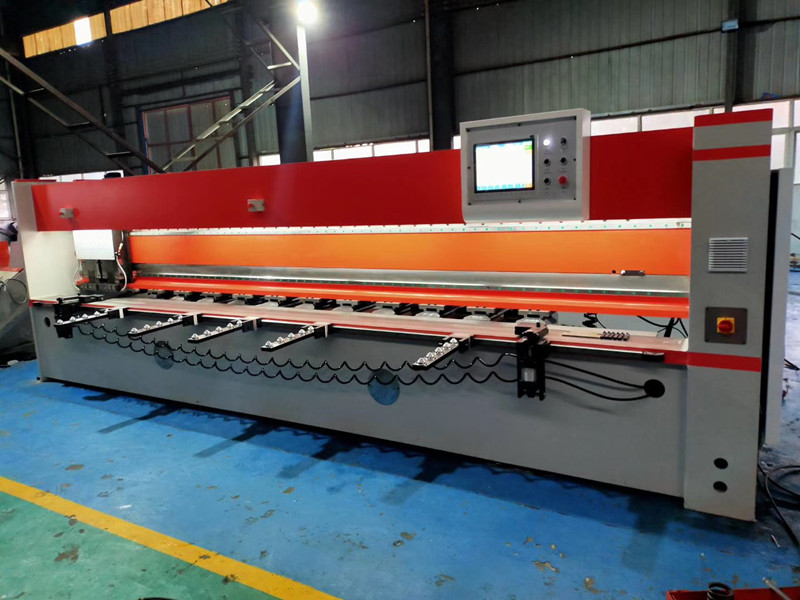

2. Advantages and disadvantages of gantry and vertical
2.1. Speed: Gantry type speed is slower than vertical type. Generally, the gantry type return speed of general manufacturers exceeds 50m/min, there
will be “speeding” phenomenon. The vertical return speed of general manufacturers is 80-100m/min.
2.2. Accuracy: The accuracy of the gantry type is lower than that of the vertical type. The precision of the gantry type of the general manufacturer is 20-30 wires.
Generally, the vertical precision of manufacturers is 5 wires or more. The depth of the planing groove is directly related to the effect of the angle.
If the depth error reaches more than 5 wires, the bending position R will be obviously different, which will cause the finished workpiece to be poor after bending.
2.3. Advantages of the processing technology: The work surface of the vertical planer is generally made of 45# material by the manufacturer.
The work surface of the gantry planer is generally welded by ordinary iron plates. When processing materials that are harder than the work surface,
it is easy to damage the work surface and appear like pits, which will cause spots on the processed product.
2.4. Safety: The vertical type has better safety than the gantry type.
2.5. Price: gantry type CNC V Groover machine is cheaper than vertical type CNC V Groover machine.
Three, from the control system classification: PLC control and CNC control
3.1. PLC control: slow speed, can only write programs, not programming, and the processing range is small.
3.2. CNC controlled: The speed can be accelerated according to the customer’s own requirements, can be programmed arbitrarily, and the button can be
directly photographed to record the position when planing different long and short boards, which is convenient for planing. Large processing range, flexible processing and high efficiency.

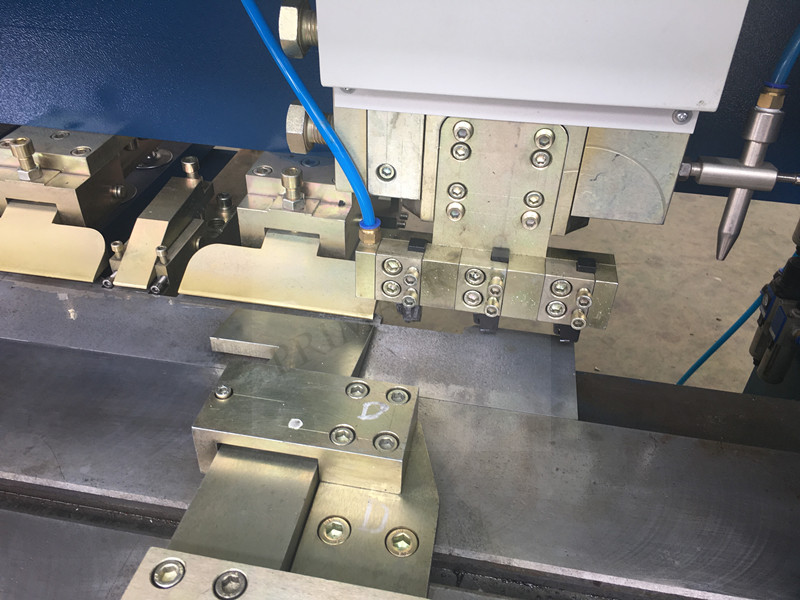

Fourth, the number of knives matched: 3 knives, 5 knives, and 6 knives.
General manufacturers use 3 knives as the standard quantity, and 5 knives and 6 knives are optional quantities. It is recommended that customers choose
5 knives and 6 knives by themselves. In fact, 5 knives and 6 knives are traditional crafts, and it is difficult to control 5 knives and 6 knives to plan straight at the same center.
The more the number of knives, the more difficult it is to install the knives. When 5 knives and 6 knives cannot be aligned in the same straight line,
the manufacturer can reasonably say that it is caused by the customer’s level of knife adjustment, and the customer will give up installing 5 knives.
Or 6 knives and choose to install 3 knives or 2 knives.
