Overview and usage points of W24S CNC hydraulic profile angle section bending machine

by prima / Saturday, 26 March 2022 / Published in Knowledge

Overview and usage points of W24S CNC hydraulic profile angle section bending machine

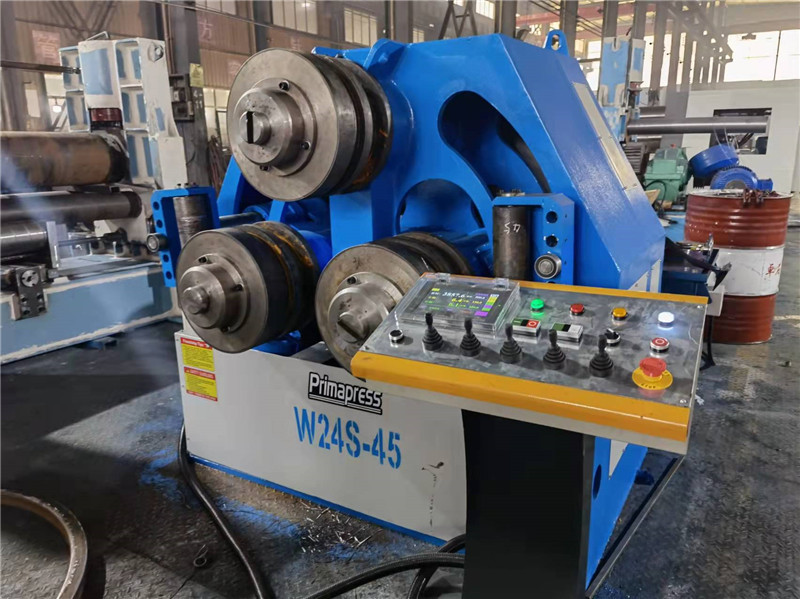

W24S series CNC hydraulic profile angle section bending machine is a three-roller bending mode with arc downward adjustment. (Note: When the precision of the rolled profile is high, a special mold needs to be prepared. If the accuracy is appropriately relaxed, the general mold can be used to complete the rolling.)

The machine body is made of steel plate welded parts, which is a closed frame structure. The position of the upper roller is fixed. The two lower rollers can move up and down in an arc around the fixed center of rotation. The three rollers are all active rollers. It rotates in the opposite direction; the lifting and lowering of the two lower rollers is hydraulically driven, the transmission is stable, safe and reliable; the roller devices on both sides of the upper roller are beneficial to control the rolling precision of the profile. The two lower rollers are equipped with digital display devices.

The upper and lower work rolls of the machine are all drive rolls. This can avoid possible out-of-sync phenomenon during the rolling process. The linear speed of the upper and lower work rolls is automatically matched by the hydraulic system during the rolling process. The rotary motion of the equipment is equipped with a braking device to ensure the accurate positioning when the work is rolled. The device runs smoothly, and the rolling is flexible and reliable.

The main function of the hydraulic system of the bending machine is to drive the rotational motion of the upper and lower rollers, the lifting motion of the rollers on both sides, and the tracking of the idler. The whole hydraulic system is designed reasonably, advanced and reliable. Equipped with oil suction and oil return filters to ensure the cleanliness of system oil. The main components in the hydraulic system (pump, oil filter, motor, seal) are all made by domestic famous brand manufacturers, with stable performance and reliable quality.

Introduction to the use of CNC hydraulic profile angle section bending machine

Overview of W24S CNC hydraulic profile angle section bending machine machine tool:

W24S series CNC hydraulic profile angle section bending machine is a three-roller bending mode with arc downward adjustment. (Note: When the precision of the rolled profile is high, a special mold needs to be prepared. If the accuracy is appropriately relaxed, the general mold can be used to complete the rolling.)

The machine body is made of steel plate welded parts, which is a closed frame structure. The position of the upper roller is fixed. The two lower rollers can move up and down in an arc around the fixed center of rotation. The three rollers are all active rollers. It rotates in the opposite direction; the lifting and lowering of the two lower rollers is hydraulically driven, the transmission is stable, safe and reliable; the roller devices on both sides of the upper roller are beneficial to control the rolling precision of the profile. The two lower rollers are equipped with digital display devices.

The upper and lower work rolls of the machine are all drive rolls. This can avoid possible out-of-sync phenomenon during the rolling process. The linear speed of the upper and lower work rolls is automatically matched by the hydraulic system during the rolling process. The rotary motion of the equipment is equipped with a braking device to ensure the accurate positioning when the work is rolled. The device runs smoothly, and the rolling is flexible and reliable.

The main function of the hydraulic system of the bending machine is to drive the rotational motion of the upper and lower rollers, the lifting motion of the rollers on both sides, and the tracking of the idler. The whole hydraulic system is designed reasonably, advanced and reliable. Equipped with oil suction and oil return filters to ensure the cleanliness of system oil. The main components in the hydraulic system (pump, oil filter, motor, seal) are all made by domestic famous brand manufacturers, with stable performance and reliable quality.

Safety to pay attention to when operating CNC hydraulic profile angle section bending machine

CNC hydraulic profile angle section bending machine is a high-efficiency processing equipment that can be applied to roll angle steel, channel steel, I-beam, flat steel, square steel, round steel and other special-shaped steel. The rolling efficiency is fast and the precision is high. The following points should be noted in the application process of this equipment:

  1. First, fix the upper die so that the center of gravity of the die and the center of gravity of the pressure are in a straight line. The planes of the upper and lower die must be in close fit, with a uniform gap, and check that the upper die has enough stroke.
  2. Start the CNC hydraulic profile angle section bending machine, prepare for pressure test, check whether there is any abnormality and whether the lubrication is good. For workpieces that are difficult to remove from the mold, appropriate lubricants and lubricating oil should be added to reduce damage to the equipment.
  3. Before the formal rolling, the workpiece number must be checked again, whether the size is consistent with the drawing, and whether the blank has burrs that affect the pressing quality. For workpieces with large batches, a stopper that can adjust the positioning must be installed, and the deviation should be adjusted in time. stop position.
  4. It is forbidden to pick and place the workpiece directly on the mold of the CNC hydraulic profile angle section bending machineby hand. For larger workpieces, it can be picked and placed outside the mold. For workpieces smaller than the mold, other tools should be used to pick and place them .
