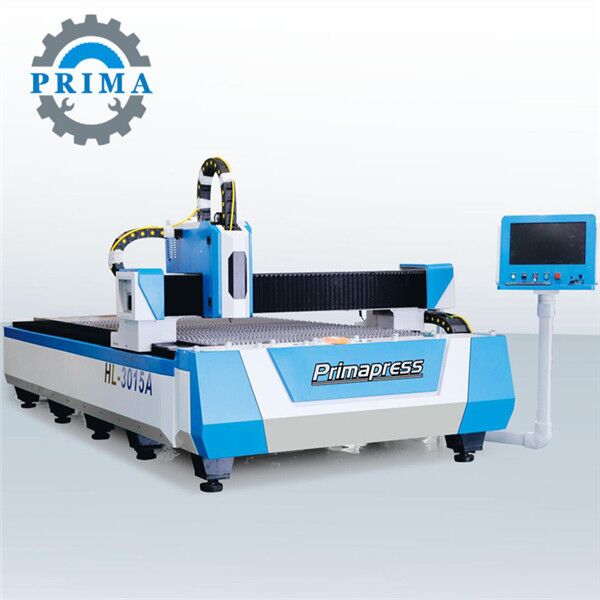

1000w PM4015 cnc fiber Metal Laser Cutting Machine Manufacturer
●High cutting speed: the cutting speed of fiber laser metal cutting machine is 2-3 times than other laser cutting machine.
●Easy operations: optical fiber transmission makes it no need for adjustment of optical path. Flexible, simple and convenient for instant cut.
●Excellent laser beam quality: smaller focused laser spot for super flexible light guide effect, more efficient and better processing quality with smaller deformation;
●Cost-effective: photoelectric conversion rate is up to 25-30%. Electric power consumption of this fiber laser cutting machine is only about 20%-30% of traditional Co2 laser cutting machine and sheet cutting speed is more than three times the YAG.
●Low maintenance cost: high rigidity of the machine bed, advanced Germany technology fiber laser source and 100,000 hours’ service life for critical components ensure low maintenance cost.
1. Prima fiber laser cutting machine, with high precision, high speed, flexible manufacturing features, known as the “king of fiber laser cutter”, can satisfy sheet processing need of the market, creating a new era of laser cutting sheet.
2. Japan Panasonic / Yaskawa servo motor with double ball screw driving system and USA original laser cutting head with dynamic height focusing function ensure high precision and high efficiency.
3. The German top technology fiber laser source can be used up to 150,000 hours with high cutting speed (15-20 M/min), free of any maintenance.
4. Automatic lubrication system for mechanic, which can lubricate the linear guide rail nearly 500 times per minute to make sure the high precision.
5. This series of products with a number of national patents, won several technology awards authoritative, strong cutting ability, high cutting speeds and superior stability.
|Max. Cutting Thickness||12 mm||20 mm|
|Laser Type||Imported Fiber Laser|
|Laser Technology||Germany Technology|
|Working area||3000*1500 mm|
|X axis Stroke||3050 mm|
|Y axis Stroke||1500 mm|
|Z axis Stroke||150 mm|
|Transmission way||Imported ball screw|
|Table-driven system||Japanese Panasonic Servo motor & Driver|
|Focus Method||Dynamic Following and Automatic Adjust Focus|
|Location precision||≤±0.05 mm|
|Re-location precision||±0.02 mm|
|Max. moving speed||100m/min|
|Minimum line width||≤0.1mm|
|Supporting Format||PLT, DXF, BMP, AI|
|Worktable max. load||1000 Kg|
|Control Method||offline movement Control|
|Control software||Perfect Laser Professional Laser Cutting Software|
Real Life photos:
