Description

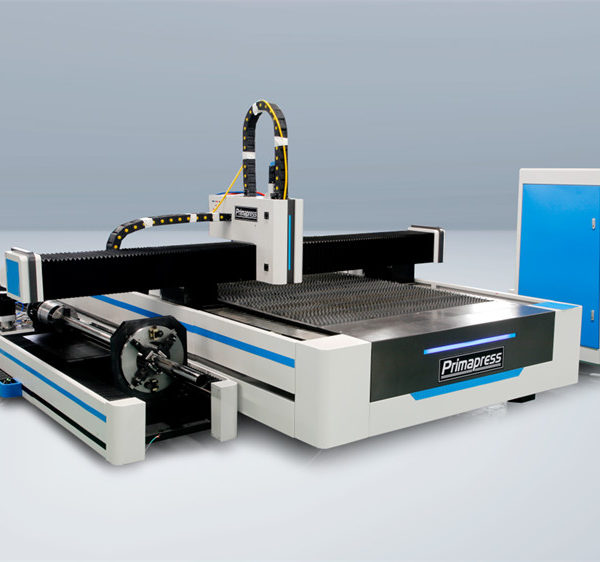

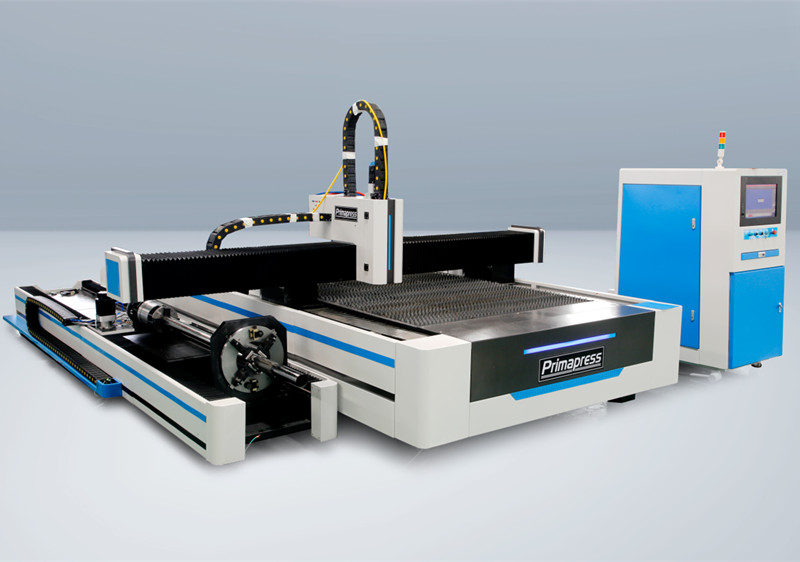

1500W 1KW 2KW 3KW Fiber laser metal sheet 6m pipe fiber laser cutting machine
video link:
Parameters:
| Machine Model | PMFiber-4015 |
| Max. working area | 1500mm x 4000mm |
| Laser | Raycus 2000 watt fiber laser |
| Cutting thickness | 0.1-16 mm/metals |
| Pipe length | 0.1-6meters |
| Pipe diameter | 20-200mm(if bigger, we can design specially)
(can load square , round, rectangle pipe, and so on ) |
| Laser wavelength | 1080 nm |
| Rated power | 10-100% |
| Water chiller power | 5.6 Kw |
| X,Y-axis location accuracy | 0.01mm |
| X,Y-axis repeat location accuracy | 0.01mm |
| X,Y-axis fast moving speed | 80 m/min |
| X,Y-axis max. cutting speed | 45 m/min |
| Min. cutting line width | 0.02-0.08 mm |
| Max. cutting speed | 45 m/min |
| Machine occupy space | 8.5 m x 3 m |
| Machine weight | 8500 KG |
| Voltage | 380 V or optional to site |
