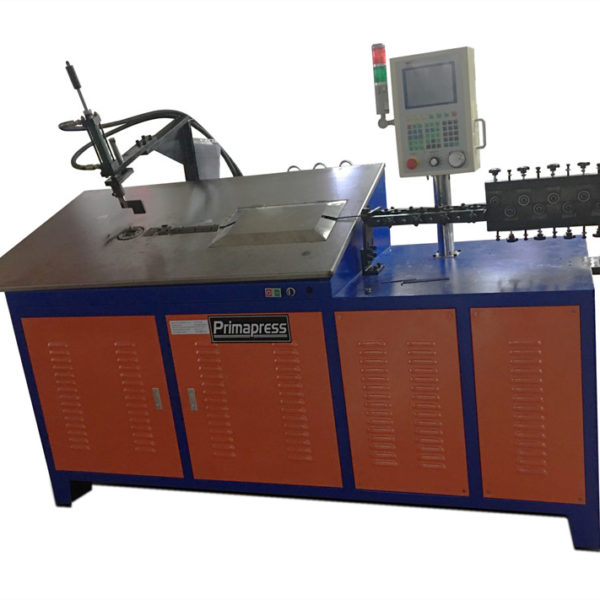

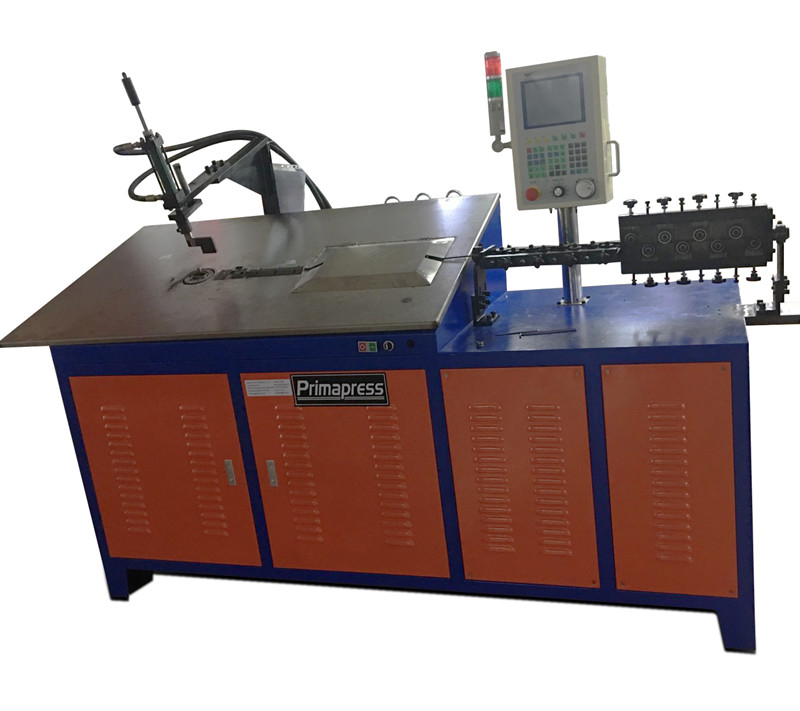

Full Automatic CNC Control 2D Wire Bending Machine Price
2D steel wire bending machine
video link in youtube:
6mm steel wire bending machine
Bending capacity : steel 2.0-6 mm
Max feeding speed:100mm/min
Max Feeding speed:2-5turns/sec
Control Panel:PLC +touch screen
Accuracy feeding:± 0.5°
Servo motor power:4.5kw
The Automatic Ring Making and Ring Butt Welding Machine Features
This automatic ring making and welding machine is composed of automatic feeding, automatic coiling, automatic moving, automatic welding and automatic unloading process.
The steel wire will pass through the feeding plate, and then enter into the wire feeding wheel and wire pressing wheel. The machine will conduct ring coiling. The cutter will cut the wire into certain length, then the robot arm will grab the ring and put it into welding position to conduct butt welding. At last, the robot arm will take out the ring. The whole process will be finished.
1. Automatic feeding ( feeding the wire)
2. Automatic coiling ( hydraulic system, wire pressing wheel)
3. Automatic moving (cylinder robot arm)
4. Automatic welding (AC pulse power/MF DC power)
5. Automatic unloading (cylinder robot arm)
6. Sound-light alarm function: the machine will give alarm when the material is used up, the power is overpressure, the
welding current is abnormal or when the temperature is too high.
7. Counting function: the machine will sum up the number of qualified product, defective product and welding times of
8. Monitoring function: the display screen will monitor the whole process of actions and the welding currentof each welding
process. It will give alarm when the monitoring function is abnormal.
Suitable for Metal Steel Ring Making and Butt Welding.
