Raycus IPG 1000w 2000w 3000w Fiber laser cutter machine, 1kw 2kw 3kw metal fiber laser cutting machines
1.Working area: 4000mm*1500mm/3000mm*1500mm/6000mm*1500mm
2.Fiber power: 500w/750w/1000w/1500w/2000w/3000w.
This fiber laser machine is manufactured in September,2017. With a beautiful appearance.
The working area is 2500mm*1300mm,3000mm*1500mm,4000mm*1500mm,fiber power can be 1000w/1500w/2000w/3000w,it is able to cut up to 20mm mild steel.
|working area2500mm*1300mm/3000mm*1500mm/4000mm*1500mm||laser power 1000w/1500w/2000w/3000w|
|Maximum velocity of movement|
|X/Y axis repeated positioning accuracy±0.02mm/m|
Cutting Materials and Thickness
More details about other thin metal materials,just leave your message on line or send e-mail to firstname.lastname@example.org .
- Stable and reliable light path system and control system.
- Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours.
- High cutting quality and efficiency with cutting speed up to 25m/min and beautiful,smooth cutting edge.
- High performance reducer,gear and rack;guide rail and ball screw to guarantee stable running.
The machine is specially used for cutting 0.4-20mm carbon steel;0.4-10mm stainless steel,galvanized steel;0.4-8mm aluminum alloy;0.4-6mm brass and various other thin metal.

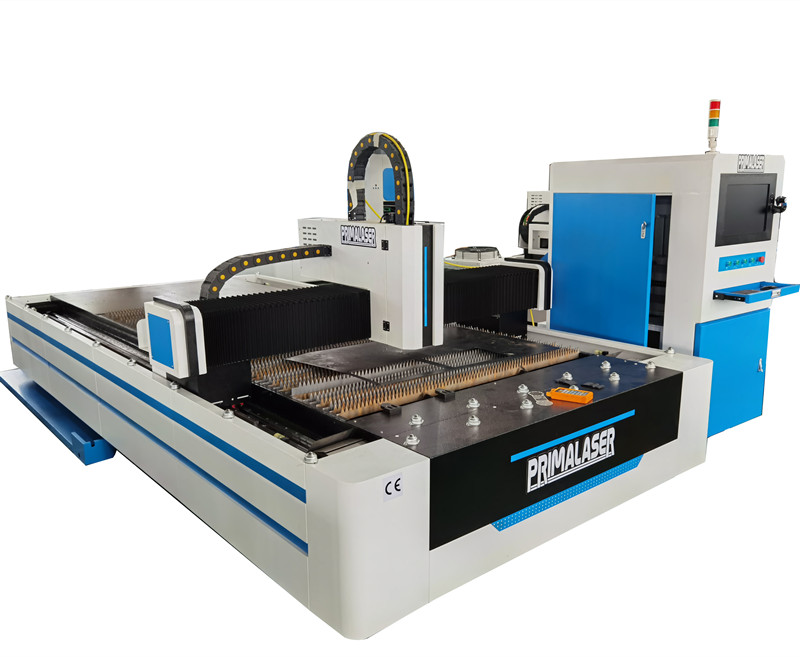

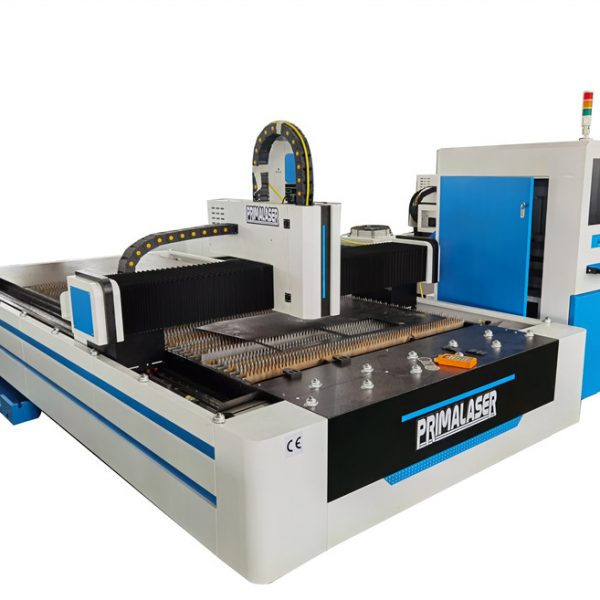

Real Life photos:
