Description

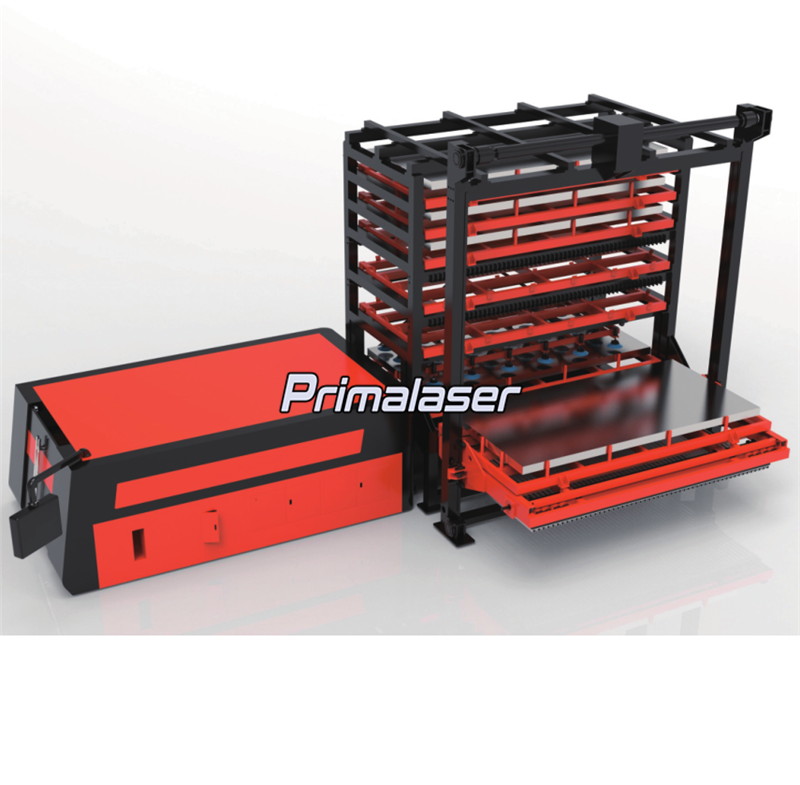

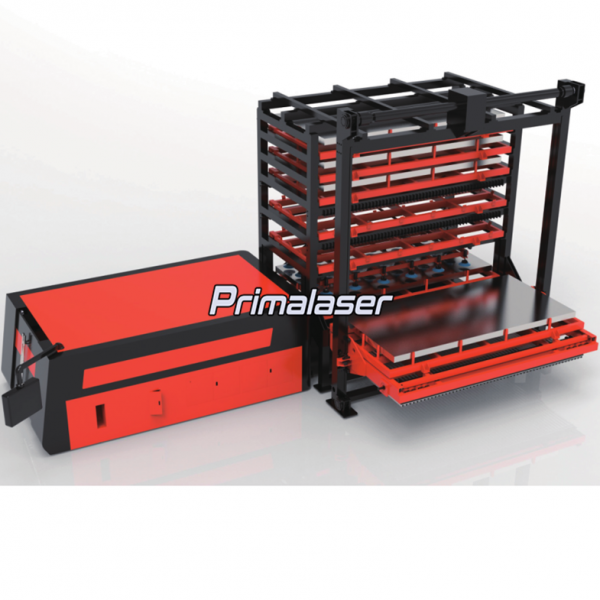

Sheet metal laser cutting machine storage tower floor Storage racks system
- 1. Realize the material storage management of the whole workshop, and automatically supply materials for each unit.
2, supporting the laser cutting machine unit, CNC punching machine unit, and CNC bending unit to realize a highly flexible automated production line.
3, with MES system interface, it can seamlessly connect with the customer’s EMS management system.
4, double the production efficiency: According to the production demand, the automatic storage material will supplement the host with raw materials according to the plan, and the automatic loading and unloading system can ensure unattended continuous production.
5, saving floor space: the automatic storage materials effectively use the space of the factory in Aodu, and the unit area utilization rate is greatly improved.
Product name | Three-dimensional material warehouse |
Sheet thickness range | 1mm-25mm |
Specification |
2500*1250mm 3000*1500mm 4000*2000mm |
Maximum load capacity of single layer | 3T/5T |
The maximum height allowed to place the board (not including wooden pallets) | 120MM
|
Number of layers | 6/8/10 |
Single sheet reclaiming load | 200kg |
Single sheet reclaiming format | According to specifications |
Sheet metal laser cutting machine storage tower floor Storage racks system
