Description

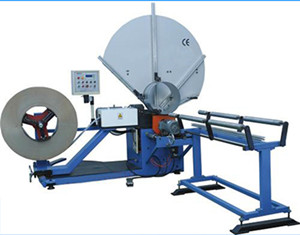

Spiral duct making machine , spiral duct forming machine P1500
video link:
Features:
- Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
- Large diameter range
- High speed synchro flying cutting system
- PLC control, convenient operation
- Light and small, site work
- Perfect swage, without leakage
Main Technical Data:
| Diameter range | Φ80-Φ1500mm |
| Tube Length | 120-8000mm |
| Thickness of Strip | 0.4-1.2mm 0.8mm stainless steel |
| Width of Strip | 137-140mm |
| Strip Speed | 1-38/min |
| Dimension (L x W x H): | 3450*2050*2720mm |
| Lock seam | Outside tube, on the inside on request |
| Weight | 1800kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical | 380V/3PH/50HZ(According to customer’s request) |
| Main Motor Power | 5.5kw |
| The power of cutting motor | 4kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
