Description

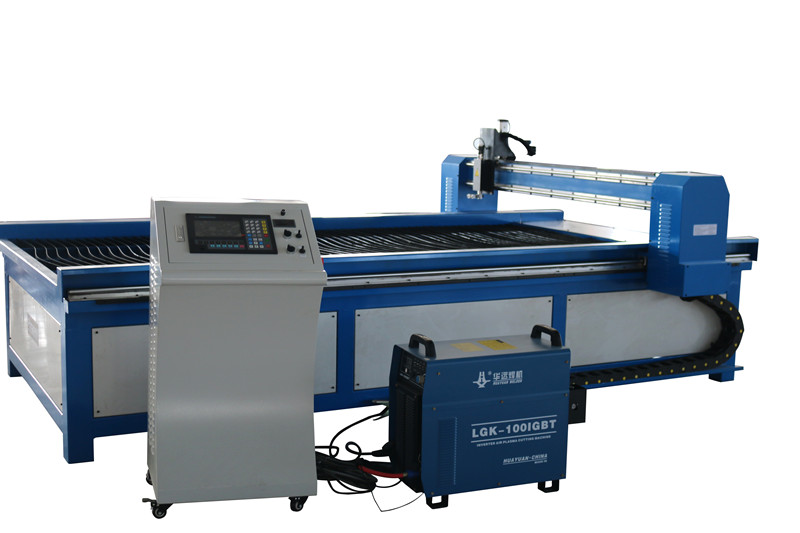

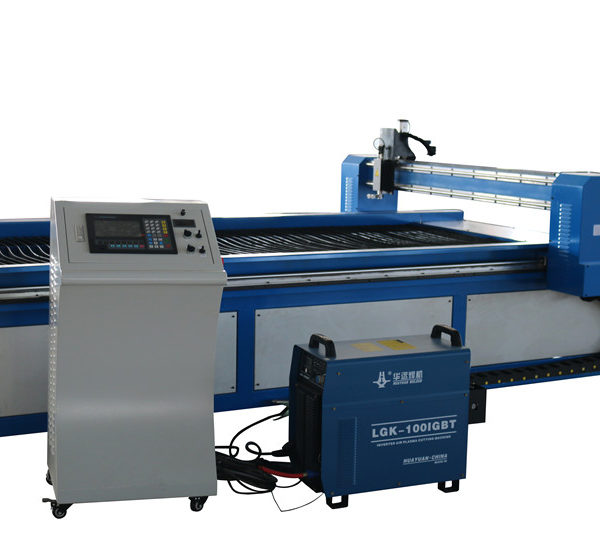

2 in 1 cnc plasma cutting and drilling machine for sheet metal
video link:
this machine is specially for the small holes drilling like 6mm , 5mm in the 20mm or 30mm steel, which can not be done by the plasma.
this is the best choice for the special customers.
Features: 1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
- Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
- For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
- And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.5. Cutting speed, high accuracy and low cost.
- CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
- Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
- Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Application
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,
aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
