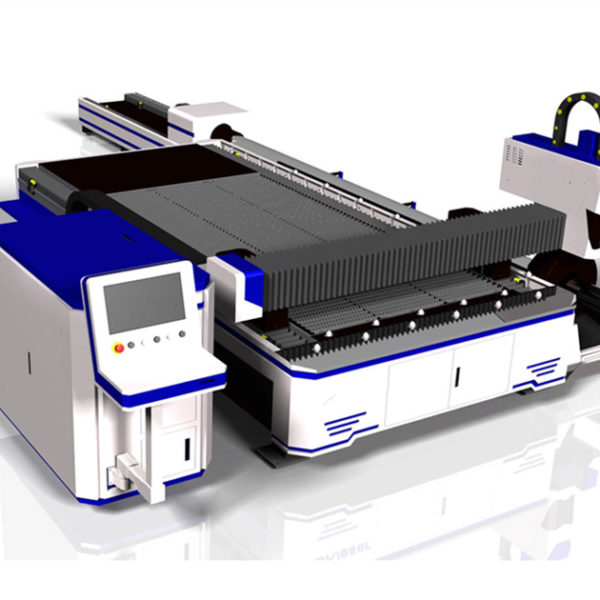

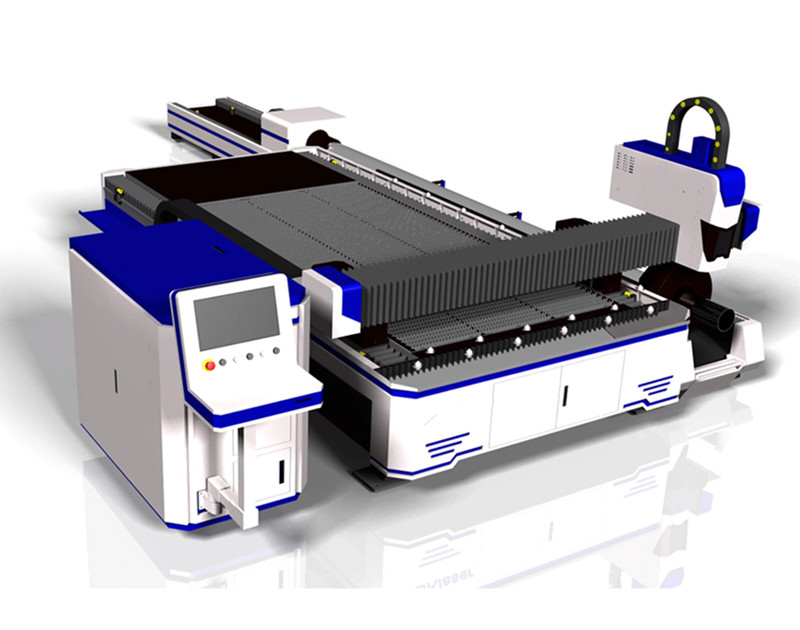

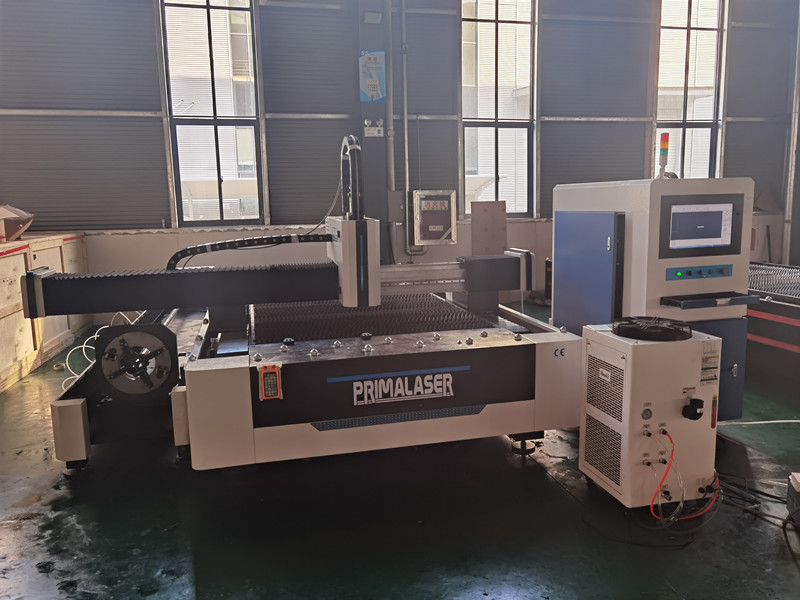

2in1 sheet and Pipe fiber laser cutting machine 3000x1500mm 1000W IPG source
Video link in Youtube :
Technical sheets: 1000W fiber laser cutting machine adopts IPG or Raycus fiber laser device which has international advanced laser technology. With Germany imported Precitec or other Raytools brand laser cutting head. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.
Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic .
|Max. working area||1500mm x 3000mm|
|Laser||Raycus 500 watt -3000w IPG fiber laser|
|Cutting thickness||0.1-10 mm/metals|
|Pipe diameter||20-200mm(if bigger, we can design specially)|
(can load square , round, rectangle pipe, and so on )
|Laser wavelength||1080 nm|
|Water chiller power||5.6 Kw|
|X,Y-axis location accuracy||0.01mm|
|X,Y-axis repeat location accuracy||0.01mm|
|X,Y-axis fast moving speed||80 m/min|
|X,Y-axis max. cutting speed||45 m/min|
|Min. cutting line width||0.02-0.08 mm|
|Max. cutting speed||45 m/min|
|Machine occupy space||5.5 m x 3 m|
|Machine weight||6500 KG|
|Voltage||380 V or optional to site|
