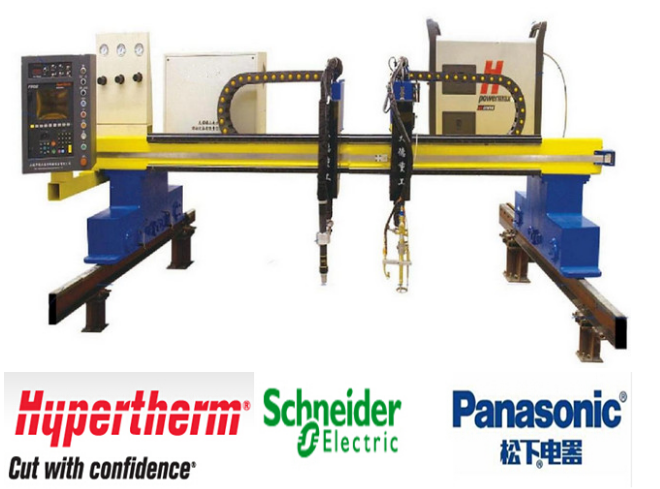

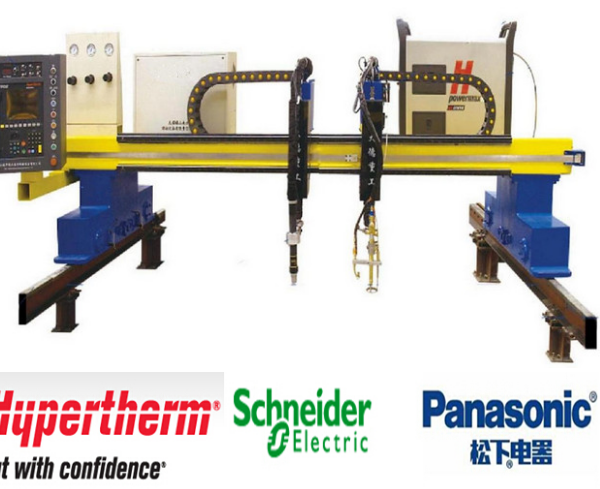

9x3m worktable cnc plasma cutting machine with 200A or 300A
Video in youtube:
1.Product overview: 1. Easy and quick operation
Pioneering field adjustable cutting torch height control, over the cutting torch raised control body design has all the necessary movement and control keys, to mobile operators in the cutting torch counterpoint is very convenient. Humanized design, more efficient operation.
2. Professional design, beautiful and atmosphere, more durable
All keys, all adopt the top design of crystal buttons, relative to other enterprises film button, button always ensure that clear bright, never wear. At the same time, the host body all adopt the technique of the lacquer that bake, colour is beautiful and durable.
3. Simple and straightforward way of graphics programming
Complex graphics CAD design is used in the office, the U disk into the cutting machine, simple graphics can also be on the cutting machine using a very simple and straightforward way programming input directly, such as “straight line, the fourth quadrant, X40, Y30”. This way of programming, ordinary operators are very easy to learn.
4. A fool type operating mode
Screen below a reminder of various operating methods, the operator can do not need training, does not need to look at the instructions.
5. A fool type maintenance way
Adopting modular design, circuit and have various working status indicator light on each module, fault phenomenon be clear at a glance. The machine maintenance only according to the indicating lamp replacement function module, maintenance is very convenient and quick.
6. Simple bulk cutting function
Cutting machine can implement automatic sorting of graphics. Operators only need to input, orientation of cutting quantity and mass continuous automatic cutting can be realized.
7. Higher reliability design
BAIDE r&d staff is a professor at the university of the geological, tutors and graduate students, etc., engaged in field monitoring system, monitoring and control system research of the sea, too many item of national 863, provincial science and technology project and the corresponding awards, has the quite rich experience on the reliability design. Can be configured for plasma cutting any plasma power source at home and abroad, without interference by plasma.
8. Free to provide a full range of operation and maintenance of CNC cutting machine video, 24 hours a day good helper, use more rest assured.
|Cross Beam Length(X axis)||4000mm;|
|Longitudinal Rail Length(Y axis)||7500mm, heavy rail|
(can be lengthened according to user’s demand)
|Effective Cutting Width (X axis)||3000mm|
|Effective Cutting Length (Y axis)||6000mm|
|Cutting torch station numbers||1 or more sets by customer demand|
|Driving motor||Stepper motor|
|Drive Mode||Bilateral Driver|
|Drive Method||Rack and pinion drive for X and Y axes|
|Plasma Cutting Thickness||1-20 mm (according to the specification of plasma power source)|
The rest should be cut by the fire.
|Automatic Torch Height Controller||Arc voltage height controller for plasma cutting|
|Relative humidity||≤95% without condensation|
|Surroundings||Aeration without shock|
|Power supply frequency||50/60Hz|
|Input power for CNC system controller||AC220-230V 1PH, optional to site|
|Input power for plasma power source||AC380V 3PH, optional to site|
|Plasma cutting gas type||Refer to plasma operation manual|
|Plasma shield gas type||Refer to plasma operation manual|
|Plasma gas source||Clean and dry, flow rate & pressure is depend|
on plasma manual
|Flame cutting gas (O2+C3H8)||oxygen and propane|
|Pressure of oxygen||0.8-1.0MPa|
|Pure degree of oxygen||≥99.6%|
|Pressure of cutting gas||0.08-0.1MPa|
