CNC 6 Meters Stainless Steel V Groover Machine, 6m v grooving machine

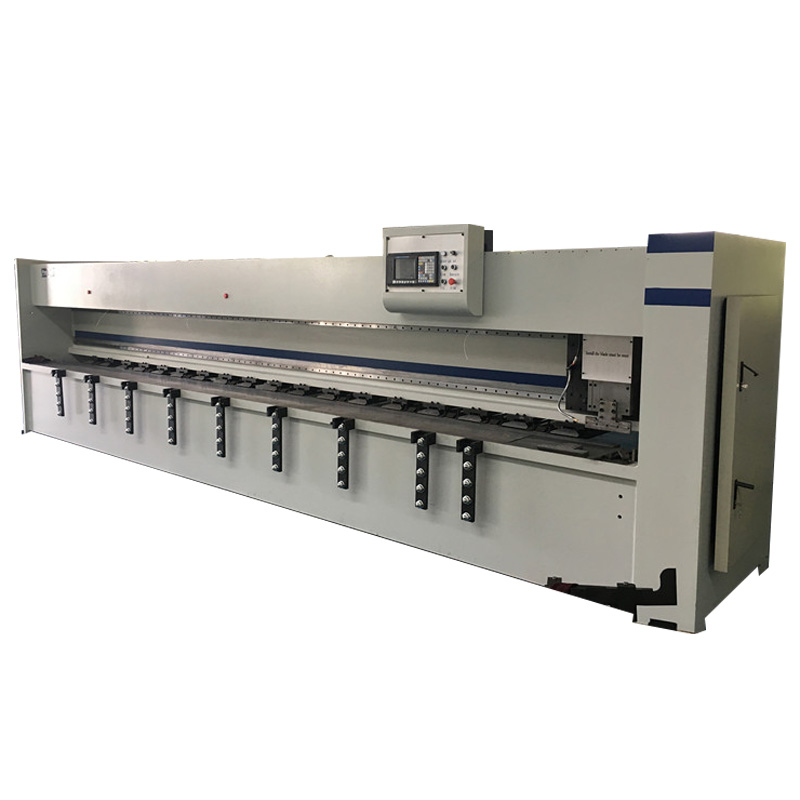

The machine adopts frame structure design and high strength bolted connection, with good overall rigidity and small deformation.
The beam of the machine is fixed and work is fed by feeding mechanism. Anvil of workbench can be debugged to guarantee that the flatness of working plane is within 0.003mm.
Tool carrier movement (left and right) adopts synchronous belt drive, with stable and efficient cutting process and flat and smooth cutting surface.
The machine adopts floor type numerical control post-feeding device, with high positioning precision, stable drive and large processing scope.
Description of numerical control system and main components:
Numerical control: Taiwan HUST-H4 three-axis numerical control system
Servo motor: Yasukawa brand 1.3KW 0.8kw MHMA servo motor Converter: Japan Mitsubishi, power 2.2kw Spindle motor: German sew, power 1.5kw Proximity switch: German Turck 1805
Rolling lead rail pair: GGB45AA rolling lead rail supplied by the well-established manufacturer-Nanjing Technical Equipment Manufacturing Co., Ltd.
Ball screw: FFZD4006F-3-P5 and FFZD2004T-3-P5 ball screw supplied by the well-established manufacturer-Nanjing Technical Equipment Manufacturing Co., Ltd.
Tool machine cable: The new-generation highly-flexible zipper cable manufactured in Taiwan
We supply blades only designed for this type of machine tool. In addition, we offer a one-year warranty and services in the full period.
We provide consulting services for commissioning and technical support as well as training on operation.
Ball screw and lead rail:
1. Environment-friendly self-lubricating design, low-friction controller.
2. Equal load in four directions
3. High-precision, maintenance free
4. High-speed and low noise,
5. Slide block is interchangeable
6. International standard specifications,
7. Full oil seal
8. High-rigid in four lines of steel balls
9. Smooth function and novel circulation
Japanese Yasukawa Servo-system
In combination of Torque rotation control, speed control and position control, the system can run at high speed, precision, with high frequency response. The setting time is short. The internal amplification can be adjusted automatically. The volume is small, which can be operated and connected easily.
|Max. width of steel sheet to be notched:||1250mm||1250mm|
|Max. length of steel sheet to be notched||4000mm||6000mm|
|Maximum thickness of steel sheet to be notched:||6mm steel|
4mm stainless steel
4mm stainless steel
|Min. thickness of steel sheet to be notched||0.3mm||0.3mm|
|Max. distance of the beam movement (backward and forward )||1250mm||1250mm|
|Min. distance of V-trough edge:||15mm||15mm|
|Max. distance of tool carrier movement (upward and downward) (in the direction of axle Z)||50mm||50mm|
|Resolution of tool carrier movement (upward and downward) (in the direction of axle X)||4300mm||6400mm|
|Min. setting unit of axle Y||0.001mmmm||0.001mmmm|
|Positioning precision of axle Y||±0.02mm||±0.02mm|
|Min. setting unit of axle Z||0.001mm||0.001mm|
|Positioning precision of axle Z||±0.02mm||±0.02mm|
|Pressure range of gas circuit:||0.4-0.6mpa||0.4-0.6mpa|
