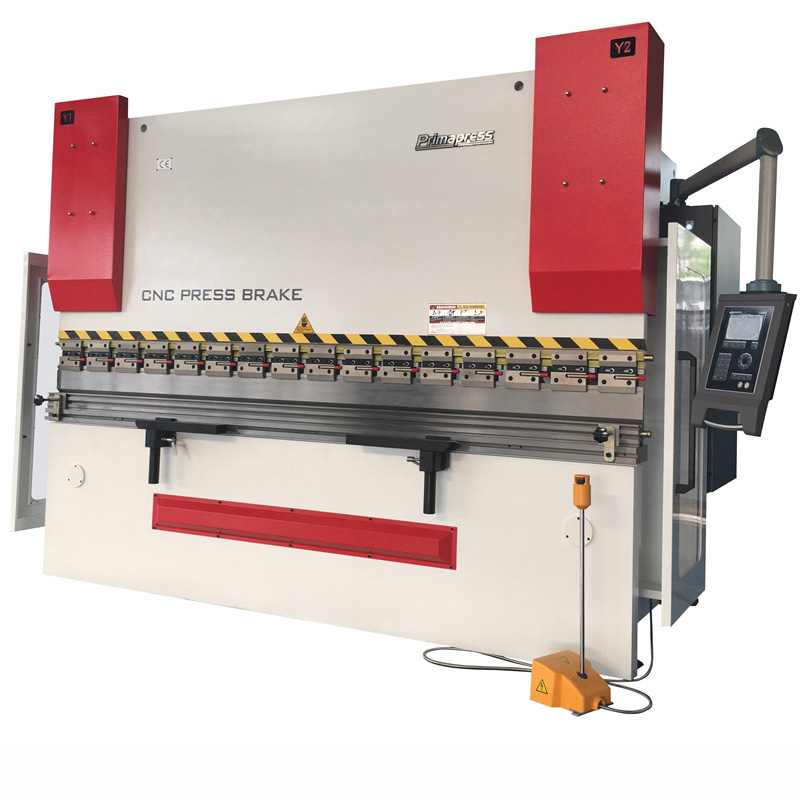

Delem DA52s 4+1 axis CNC Servo hydraulic press brake CNC Bending press brake
1)The Whole Structure of Press Brake:
Totally European design, streamlined looking
Taking off inner-stress of welded parts by tempering, good stability
Remove rust with sand-blast and coated with anti-rust paint
Adopt Spanish pentahedron machine center, once clamping can finish all working surfaces which will
guarantee dimension precision and position precision.
The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.
Frames, assembly surfaces and connection holes are machined after the welding process, up to 60′ in a single pass.
Supplying three front sheet supports , Finish of Nippon Polyurethane paint.
2) Ram structure:
Upper stroke design for bending, low noise, stable operating situation , Parallel tolerance of Y1 and Y2 is 0.01mm
Y1,Y2 can be programmed separately can work under non-balance load, can bend cone-shape work piece
At bottom dead center a pressure-keeping time is offered, and can be programmed to assure precision of all kinds of work piece. Can move the ram up slowly, which allows the operator to control work piece conveniently Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest
Close loop electro-hydraulic synchronized servo-control system, the most advanced
Hydraulic system is from Rexroth, Germany, a full loop electric-hydraulic proportional servo control, Sumitomo oil pump, Japan.
Imported linear optical reader, guiding system, positioning system and hydraulic balancing system with
high precision, which all can permit the processing work piece of full length or with eccentric.
An outfit with “C” is at throat, as deformation compensation on throat, directly measuring the distance
between upper tool and low die, assuring the precision of work piece.
All seals in cylinder is imported, the most famous brand, good quality and high performance
Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level
can be read or seen directly
Being able to work under rated load continuously, stable working and high precision
4) CNC Back gauge:
Close loop electro-hydraulic synchronized servo-control system,the most advanced
Good for work piece needing multiple steps of bending with high precision requirement.
X is moved with ball screw,guided by linear guide,and driven by digital AC servo-motor.
Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
Two fingers are moving alone swallow guide,operate easily with high precision
Particular finger-stop design,enlarge the range of back gauge.
Attachment with the machine& Machine key components list
|No.||1 years spares||Remark||Name||Origin|
|1-||Grease gun& foot switch||Free of charge||Asynchronous motor||Siemens, Germany|
|2-||Keys to button lock and electric cabinet lock||FOC||Controller||Delem DA52, Holland|
|4-||O-type sealing rings||FOC||AC contactor||SCHNEIDER|
|5-||Combined washers||FOC||Circuit Breakers||SCHNEIDER|
|6-||Mobile type foot switch||Servo motor||Estun|
|7-||Operation & maintenance manual||In English||Gear pump||Siemens pump|
|8-||Electrical diagram||In English||Sealing parts||Valqua ,Japan|
|9-||Operation Instruction ENGLISHOperation Instruction（Machine）|
Packing list, Instruction of System
Certificates of quality
|Hydraulic Integrated Systems||Bosch, Germany,|
|Quick release||China Shanghai|
