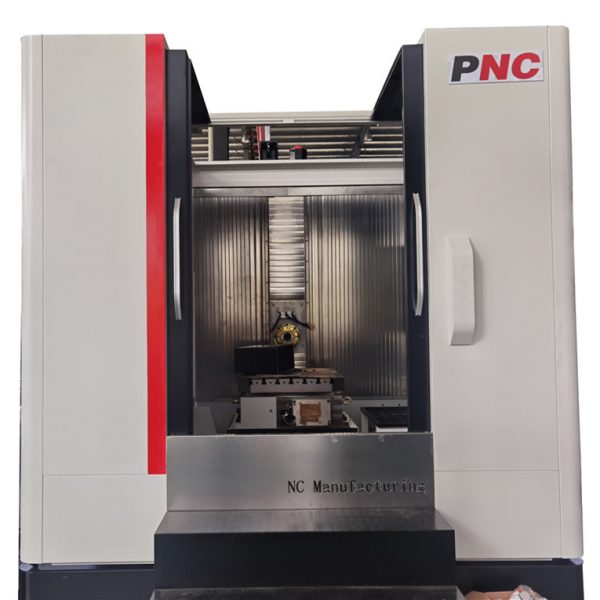

Features of HMC-63S Heavy Duty Cnc Horizontal Machining Center HMC Horizontal Cnc Milling Machine Manufacturer:
Ultra high performance horizontal machining center
- The popular inverted T-shaped movable column and integral bed structure are adopted, the reasonable reinforcement layout optimizes the chip removal structure and improves the guide rail lubrication recovery system, which improves the overall rigidity and appearance quality of the casting;
- The frequency conversion tool magazine made in Taiwan is adopted, and the tool change time is shortened to 5S, greatly improving the processing efficiency;
- XYZ three axes are equipped with high torque and high speed motors as standard, with fast moving speed and accurate positioning accuracy;
- The spindle motor is equipped with a 15/18.5kW high-power and generous motor as standard. The torque and speed of the spindle are significantly higher than those of the equivalent models of other brands. It can be processed at high speed or cut again (synchronous pulley+ZF or BF double speed gearbox 1:1 and 1:4 two speed transmission can also be selected to achieve low speed, large torque and high speed, large power);
- The machine tool is equipped with double spiral chip conveyor+chain plate chip conveyor as standard to ensure smooth chip removal;
- Both sides and the top of the machine tool column are fully enclosed for protection, so as to prevent the back splash of iron filings.
- The worm gear and worm system of the machine tool workbench (indexing single table, indexing exchange table, CNC single table, CNC exchange table) adopts thin oil lubrication, which improves the working condition, extends the service life, improves the transmission efficiency, and reduces the adverse impact of temperature rise on the machine tool during movement.
- The main accessories of the machine tool are all famous brands at home and abroad, with stable quality and reliable performance.
Japan Fanuc CNC System
Taiwan efficient frequency conversion tool magazine
Japan THK guide rail Proton fully automatic lubrication pump wide air conditioner with buzzer tricolor light
HMC-63S opto mechanical characteristics:
- The machine bed is made of HT300 high-grade cast iron;
- Japanese THK line rail is adopted, and the width of X/Y/Z three-axis rail is 45/45/55mm;
- The X/Y/Z three-axis guide rail spans are 428/455/437mm respectively;
- The X and Y axes use C3 high precision lead screws with a diameter of 40 and a pitch of 12, the Z axis uses C3 high precision lead screws with a diameter of 50 and a pitch of 12, the three axes use five FAG original bearings, three at the motor end and two at the tail end, and are pre tensioned;
- The standard BT50 annular spraying spindle is equipped with an air curtain protection device to completely avoid the penetration of cutting fluid and dust, ensure the accuracy of the spindle and extend its service life;
- The lead screw guide rail lubrication system adopts fully automatic intermittent thin oil lubrication; All oil pipes are made of pure copper;
Heavy Duty Cnc Horizontal Machining Center HMC Horizontal Cnc Milling Machine Manufacturer Main accessories
|S/N||Name||Quantity||Manufacturer|| Specification Model
|Japan Fanuc|| Fanuc 0i MF; 10.4
color LCD display
|2||Spindle servo motor||1 set
β iI P30／8000
|3||X, Y, Z, B servo motors||1 each||Japan Fanuc||β iS 30/2000 / β iS 40/2000 B/ β iS30/2000/ β iS 12/3000
|4||X, Y and Z axis lead screw bearings||One set of each||Germany FAG/Japan NSK||35×72/35×72/40×72
|5||X, Y and Z axis ball screws||One set of each||Japanese THK/Taiwan HIWIN/PMI||GQ40/40/50 × 12－C3
|6||X axis linear guideway||2||Japanese THK/Taiwan HIWIN/PMI||45|
|7||Y-axis linear guide rail||2||Japanese THK/Taiwan HIWIN/PMI||45|
|8||Z-axis linear guideways||2||Japanese THK/Taiwan HIWIN/PMI||55|
|9||Tool magazine||1 set||Okada||24 disc type|
|10||Main shaft||1 set of||tumblers/keys
|11||Automatic lubrication system||1 set of||Proton
|12||Main pneumatic components||1 set of||gold ware
|13||Main electric components||1 set||Schneider
|14||Main drive toothed belt||1 set||Japan UNITTA|
|15||X, Y and Z shaft couplings||One set of each
|16||A/C||1 set||unit wide|
