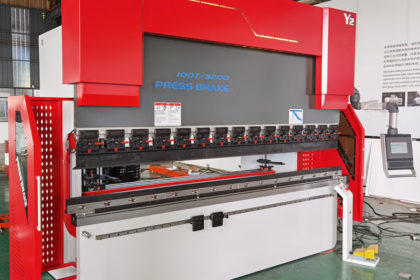

Sheet metal hydraulic press brake Bending machine specific components and its use steps
Keywords: sheet metal press brake bending machine
If the bending operation is involved in the operation of the factory, then a bending machine is needed. Do you know what parts it is composed of?
Mainly the slider part, the workbench, the synchronization system, and the stopper mechanism, etc. . After understanding its components.
We also need to understand its use steps, so as to help us use it in the correct way. In the article, the editor will give you a detailed introduction to
the components and use steps of the sheet metal press brake bending machine. Get up and take a look!
What are the components of the bending machine?
The overall structure of the bending machine is very complicated, because its entire operation process involves many components, let’s take a look at its components together:
1, slider part
Using hydraulic transmission, the sliding block part is composed of sliding block, oil cylinder and mechanical stopper fine-tuning structure.
The left and right oil cylinders are fixed on the frame, the piston drives the slider to move up and down through hydraulic pressure, and the mechanical
stop is controlled by the numerical control system to adjust the value.
2, workbench part
is operated by the button box, the motor drives the stopper to move back and forth, and the distance of the movement is controlled by the numerical control system.
The small reading is 0.01 mm, and the front and rear positions are both limited by the travel switch.
3, synchronization system
The machine is composed of a torsion shaft, swing arm, joint bearing, etc., with a mechanical synchronization mechanism, simple structure, stable
and reliable performance, and high synchronization accuracy. The mechanical stop is adjusted by the motor, and the numerical control system controls the value.
4, stopper mechanism
The stopper is driven by a motor, and the two screw rods are driven to move synchronously through the chain operation, and the numerical control system
controls the size of the stopper.
Steps to use the bending machine:
After understanding the components of the bending machine, the next step is to understand its use steps. Understanding its use steps can help everyone use it better:
1. First, the hydraulic press brake is connected to the power supply, turn on the key switch on the control panel, and then press the oil pump to start, so that
you can hear the sound of the oil pump rotating.
2. Stroke adjustment, the use of the bending machine must pay attention to the adjustment stroke, and it must be tested before bending. When the upper die of
the bending machine descends to the bottom, there must be a gap of plate thickness. Otherwise it will cause damage to the mold and the machine.
The stroke adjustment also has electric quick adjustment and manual stomach adjustment.
3. For the selection of the bending notch of the hydraulic bending machine, a notch with a width of 8 times the thickness of the plate is generally selected.
If you bend a 4 mm sheet, you need to choose a slot of about 32. The back gauge adjustment generally has electric quick adjustment and manual fine adjustment.
4. Step on the foot switch to start bending. The bending machine is different from the shearing machine. It can be released at any time. When the foot is released,
the bending machine will stop and continue to go down while stepping on it.
The above is what the editor introduces to you about the components of the bending machine and its use steps. If you have any doubts, please contact us in time!
